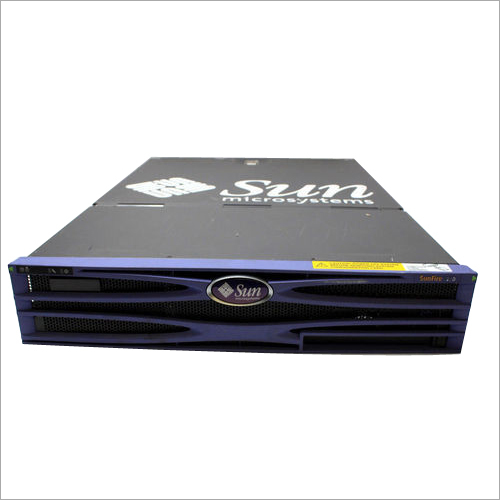

Sun Fire V240 Server

Product Description

 A Compact, Cost-Effective, Multiprocessor System in a Small Package Powered by up to two 1.34-/1.5-GHz UltraSPARC® IIIi processors, the Sun Fire V240â„¢ server is an entry-level, data center-class server. It provides high availability and expandability in a compact, 2U package. Four auto negotiating Gigabit Ethernet ports provide multiple connectivity for high- speed, high-bandwidth networking, while hot-swappable, front-accessible disk drives and redun- dant, hot-swappable power supplies (with independent cords) further enhance the Sun Fire V240 server’s up time. With expandability features such as three PCI slots, up to four disk drives, and eight GB of memory, the rack-optimized Sun Fire V240 server easily scales to meet the needs of Tier 1 and Tier 2 applications. With a low-cost, integrated SSL option on the motherboard, the Sun Fire V240 server provides fast, secure Web transactions without sacrificing CPU cycles or a PCI slot. The standard System Configuration Card and serviceability features help enable quick upgrades and repairs, while the unit’s Sun Advanced Lights Out Manager (ALOM) provides remote management to a large number of servers from virtually anywhere on the network.

Sun Fire V240 Server Specification

Processor Options

Main Memory

4 DIMM slots per processor, registered DDR-1 SDRAM (PC2100) 128 bit + ECC databus system configurations from 512 MB to 8 GB Standard/Integrated Interfaces

Expansion Bus

Three internal PCI 2.2-compliant expansion slots:

System Configuration Front-accessible for transfer of system configuration information, including host ID reader and card (removable)

Security

Optional Hardware Cryptographic Module, offering security protocol acceleration via a daughtercard

Mass Storage and Media

Internal Disk Up to four hot-swap, Ultra160SCSI 73/146-GB disks. Mixing of drives is permitted in the combinations:

Internal DVD One Slimline ATAPI DVD-ROM (optional)

External Disk Sun StorEdge™ S1 array*, Sun StorEdge T3B array, Sun StorEdge 3310 SCSI array*, Sun StorEdge 3120 SCSI array*, Sun StorEdge 3510 FCAL array, Sun StorEdge 9990 series (9970, 9980) via HBA’s x6727A/SG-XPCI1FC-JF2 (F-port)/SG-XPCI2FC-HF2 (F-port) Sun Storage D240 media tray

External Tape Sun StorEdge DAT 72 Tape* Sun StorEdge L8 Tape Autoloader (Solarisâ„¢ 8 and Solaris 9, LT02 and SDLT320) Sun StorEdge L25 via x6758A HBA (Solaris 9 only, LT02) Sun StorEdge L100 via x6758A HBA (Solaris 9 only, LT02)
